AutoScan - Train Load Volume Scanner

Productivity Matters

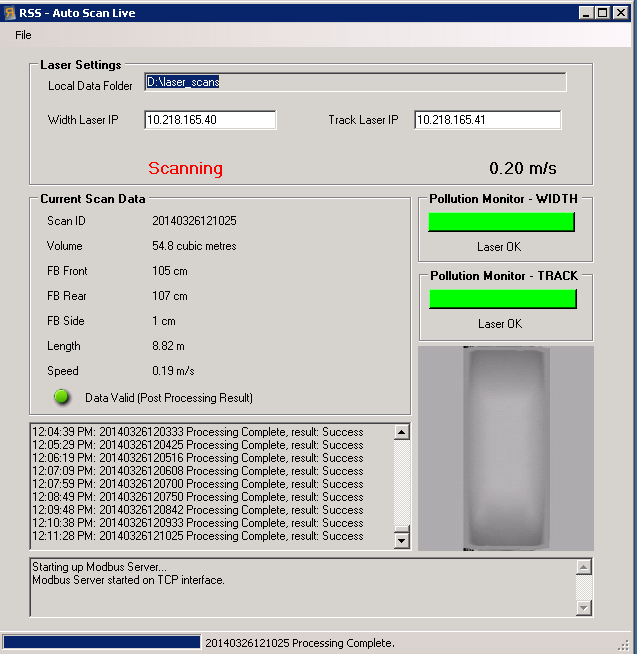

AutoScan is a Windows™ based volumetric scanning system for Train Wagons. It uses non-contact LiDAR to measure loads of bulk loose solids in train wagons.

Need a Volumetric Scanner for Haul Trucks

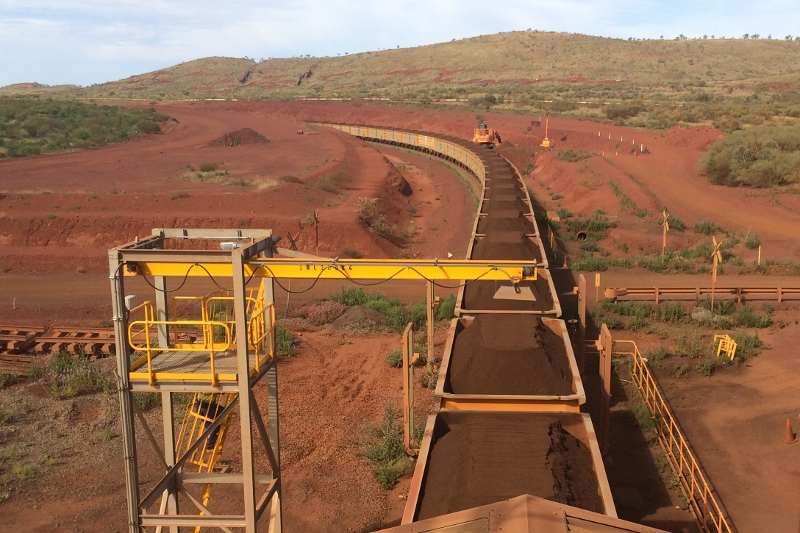

Non-contact volumetric scanning system for Train Load Outs

  • Real Time volumetric scanning for train wagons
  • Quantify actual volume of material moved
  • Wagons are scanned 'in-motion', no need to stop the train
  • can be integrated with the train loading control system via MODBUS.
  • Calculation of mission critical parameters moments after the wagon leaves the scanning area
  • Integrate with weight data for real-time density feedback
  • Non Contact measurement using Time of flight LiDAR technology

Software Features

The AutoScan processing software provides near real-time outputs to the industrial network. It features;

  • A responsive multithreaded design
  • Easy Installation and Configuration
  • Calculation of production critical parameters in less than 10 seconds
  • TCP interface to LiDAR sensors to facilitate operation in a VM environment

Data items delivered to the industrial network include;

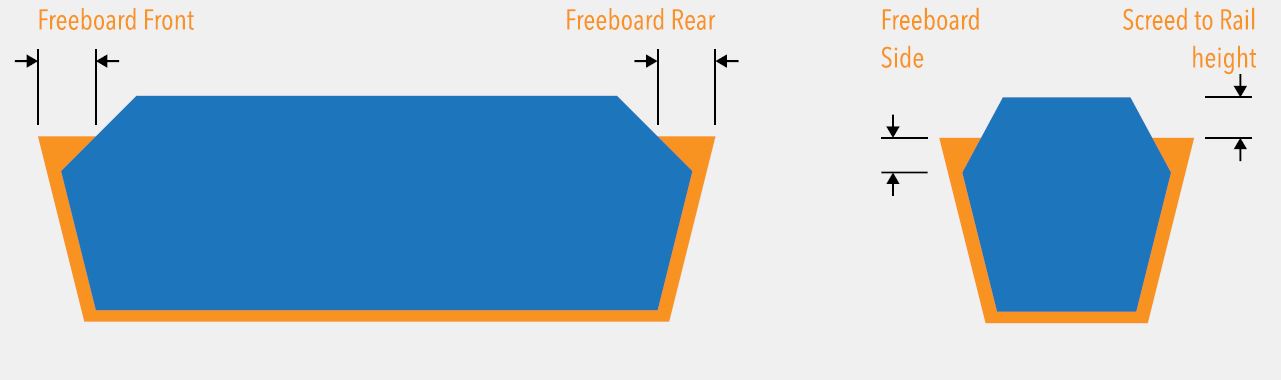

  • Front Freeboard
  • Rear Freeboard
  • Side Freeboard
  • Laser Status flags for remote maintenance monitoring
  • Data Valid flags
  • Material Angle of Repose

Data Interface Options

  • PLC integration of key loading metrics via MODBUS
  • Real-time data delivery to local or remote MS SQL database

Thanks to X3DOM

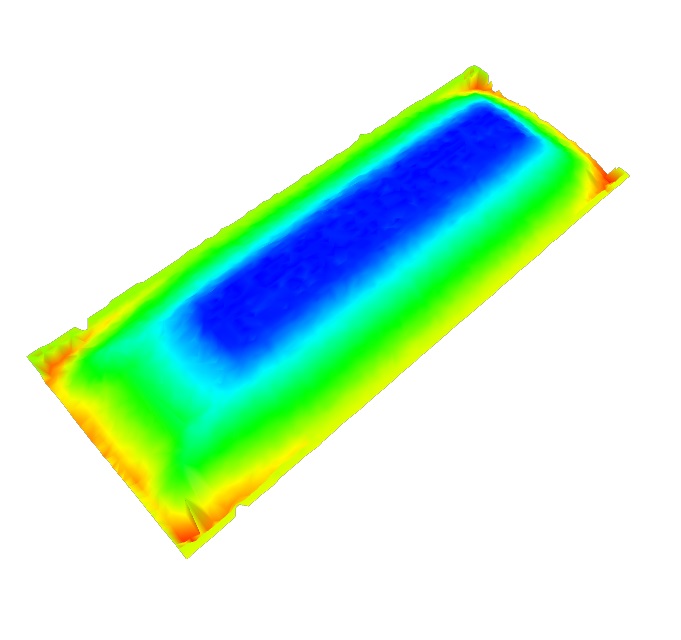

  • Press 'r' to Reset View
  • Use mouse to 'Explore'
  • Scroll wheel to zoom
  • Double-click to make centre

Software Solutions for improving efficiency in train loading facilities

Read about one of the success stories where installation of the AutoScan train volume scanner was installed to increase productivity.
