LED Signs for Passenger Information Displays

LED Bus Timetable Signs

Reliable Software Solutions electronic LED signs are designed to deliver accurate stop and route information for waiting passengers, included calculated wait times, and service disruption announcements.

Linking directly to the GTFS feed, if available, or our GPS tracking solution, the signs can be configured to display real-time arrival information for a particular stop, so that commuters can be confident of their next service arrival time.

Our Digital Messaging Service is capable of integrating high resolution imagery capable of supporting service announcements.

Reliable Software Solutions as over 10 years of electronics sign experience. All signs are designed in Queensland to withstand the hash Queensland, temperature, humidity and fauna.


C Series

Designed specifically to suit outdoor bus stops, this display has the following features;

  • High Resolution (P2.5)
  • Excellent Visibility in full sun
  • 7 lines of text plus scrolling footer
  • Mobile network data connection for accurate bus arrival information in real-time
  • Robust Toughened Plexiglas View Panel with Stainless Steel IP66 Enclosure
  • Service Announcement capability

Specifications

DIMENSIONS OF VIEWABLE AREA

640 x 320 mm

PIXELS (PITCH)

256 x 128 (2.5mm)

PIXEL DENSITY

160,000 dots /m2

BRIGHTNESS

1000 cd/m2

BEST VIEWING DISTANCE

> 2.5 m

HORIZONTAL VIEWING ANGLE

> 140 degress

OPERATIONAL TEMPERATURE

`10 ~ +50℃

LIFESPAN

> 100,000 hours

DIRT / MOISTURE PROTECTION RATING

IP65

WEIGHT

15 kg

EXTERNAL DIMENSIONS

740 (L) mm x 420 (H) mm x 135 (D) mm

POWER CONSUMPTION

46 Watts (nominal)

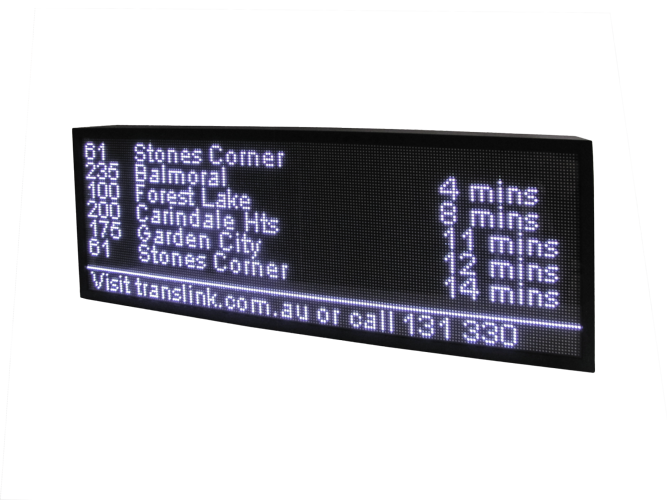

B Series

Designed specifically to suit outdoor bus stops, this display has the following features;

  • Excellent Visibility in full sun
  • 6 lines of text plus scrolling footer
  • Mobile network data connection for accurate bus arrival information in real-time
  • Powder coated mild steel IP 65 Enclosure
  • Service Announcement capability
  • Programmable, location specific properties
  • Surveillance option

Specifications

DIMENSIONS OF VIEWABLE AREA

960 x 320 mm

PIXELS (PITCH)

192 x 64 (5 mm)

PIXEL DENSITY

40,000 dots /m2

BRIGHTNESS

700 cd/m2

BEST VIEWING DISTANCE

> 5 m

HORIZONTAL VIEWING ANGLE

> 140 degress

OPERATIONAL TEMPERATURE

`10 ~ +50℃

LIFESPAN

> 100,000 hours

DIRT / MOISTURE PROTECTION RATING

IP65

WEIGHT

15 kg

EXTERNAL DIMENSIONS

740 (L) mm x 420 (H) mm x 135 (D) mm

POWER CONSUMPTION

50 Watts (nominal)

Need a custom solution?

We can customise some elements of these displays, for example power input voltage
