Payload XNUT (P-NUT) - Haul Truck Fleet Integration

Payload Protocol Converter for Haul Truck Fleets

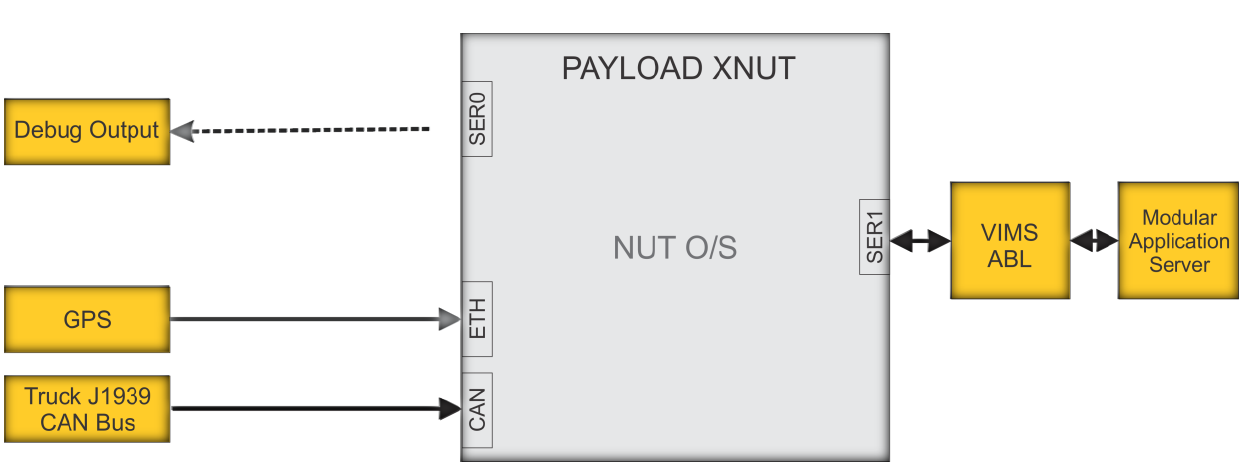

The PNUT Protocol Converter uses custom firmware to provide an interface between a number of haul truck input devices to generate a Fleet System compatible protocol on one of the industrialised serial ports.

The P-NUT device can be used to integrate Payload and Health data from onboard the truck to some of the most popular fleet management systems on the market.

Ideal for any mine site that may have incompatible, existing or aging haul truck fleets that need integration into modern fleet management systems.

Payload XNUT Features

  • Real-Time Operating System (Nut O/S)
  • Rugged, field survivable hardware, thanks to ProconX.
  • Customisable Fleet System integration.
  • Previous integrations include MineStar and Modular.
  • Eliminate manual data recording for weight data.
  • On-Board logging and debugging to assist with integration.
  • Off-Board logging available via SysLog.
  • HTTP interface for configuration, troubleshooting and diagnostics.

Previous Integrations Include

  • Terex MT Series Dump Trucks
  • NHL NTE 360 Dump Trucks
  • Leibherr T262 Dump Trucks
  • Terex SKF15 Drill
  • Terex RH Series Excavators

Specifications

CONNECTIVITY

  • 1x Ethernet port (IEEE 802.3i 10BASE-T)
  • 1x CAN interface (ISO 11898)
  • 2x serial ports (RS-232) with RXD, TXD, and Signal Ground signals
  • 2x fully opto-isolated inputs rated up to 500V, nominal 24VDC

HARDWARE

  • Atmel AT90CAN128 RISC micro controller
  • Full CAN Controller
  • Brown-out detection
  • Watchdog supervision
  • LED Status Indicators
  • Battery backed Real-Time Clock

PROTECTION

  • 10 kV ESD protection on RS-232 ports
  • 6 kV ESD protection on CAN port
  • 1.5 kV galv. isolation on Ethernet

POWER

  • 10-30 V DC, 750 mW
  • 30 mA typical (at 24 VDC nominal)

ENVIRONMENT

  • 0 to 60 °C (32 to 140 °F) operating temperature
  • -25 to 85 °C (-13 to 185 °F) storage temperature
  • 10 to 95% humidity, non-condensing
  • Free from corrosive gas (minimal)

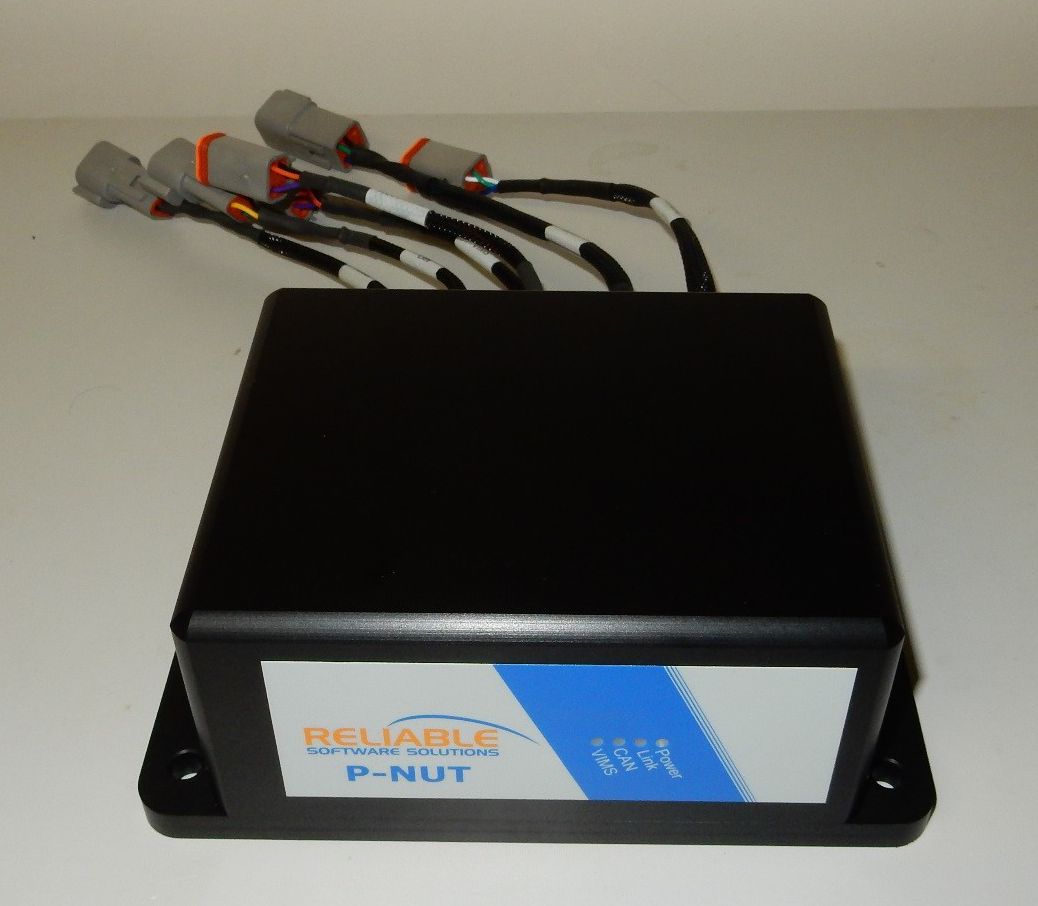

ENCLOSURE

  • 200mm x 130mm x 80mm w/enclosure (Aluminium)
  • 2.4 kg
  • 4 x 8mm Dia. Mounting holes

Need a custom solution for your installation?

We can customise some of the software and connectivity options, just ask.
