TruckScan I.T. - Haul Truck Load Scanner

Productivity Matters

TruckScan I.T. is a WindowsTM based volumetric scanning system for Mining Haul Trucks. It uses non-contact Laser scanner to measure loads of bulk loose solids in mining haul trucks.

Need a Volumetric Scanner for Train Wagons

Non-contact volumetric scanning system for Haul Trucks

  • Real Time 3D volumetric scanning
  • Quantify actual volume of material moved

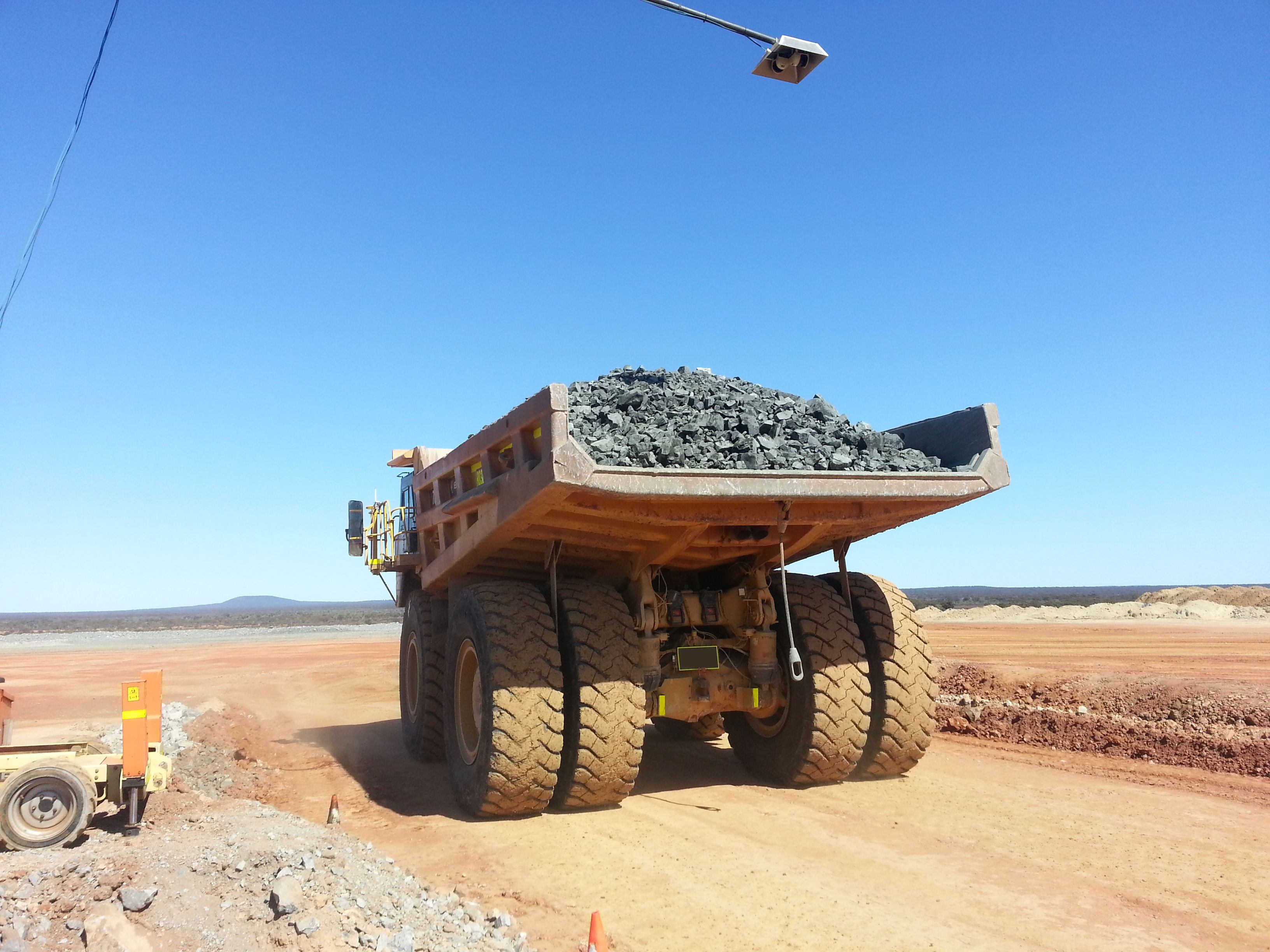

  • Trucks are scanned 'in-motion', no need to stop trucks
  • Monitor for carryback
  • Calculation of mission critical parameters moments after the truck leaves the scanning area
  • Integrate with weight data for real-time density feedback
  • Non Contact measurement using Time of flight LiDAR technology

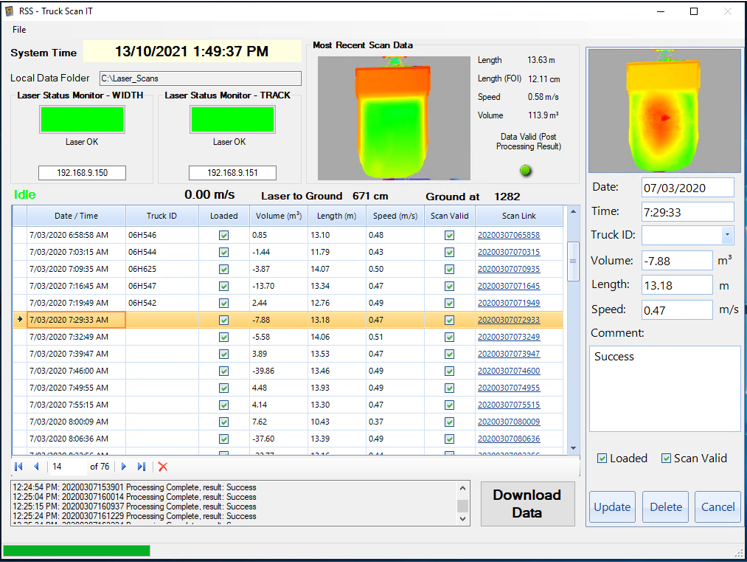

Software User Interface

  • Responsive Multithreaded design
  • Easy Installation and Configuration
  • Developed for Microsoft Windows
  • 3D Visualisation Tools via X3D output format

Export Reports to;

  • PDF
  • Excel
  • HTML
  • CSV

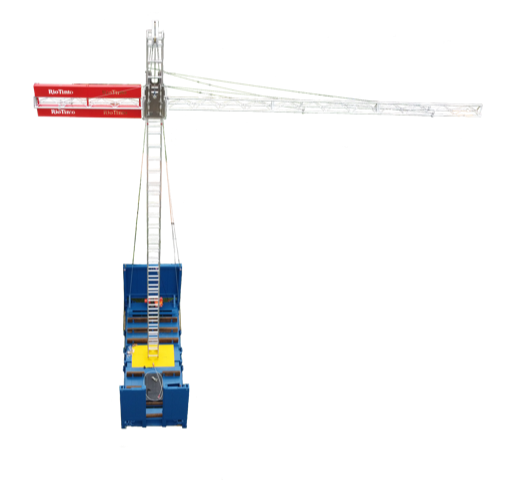

Mounting Option

  • Light Weight Aluminium Boom / Truss
  • Painted Steel base with winch and load rated anchor points
  • Achieves 13.5m Laser height for the largest haul trucks
  • Self Contained
  • Includes all mounting equipment / rigging
  • Wind Rated for Region A4 (AS1170.2:2011)
Contact Us for more information

Data Interface Options

  • PLC integration of key loading metrics via MODBUS
  • Real-time data delivery to local or remote MS SQL database

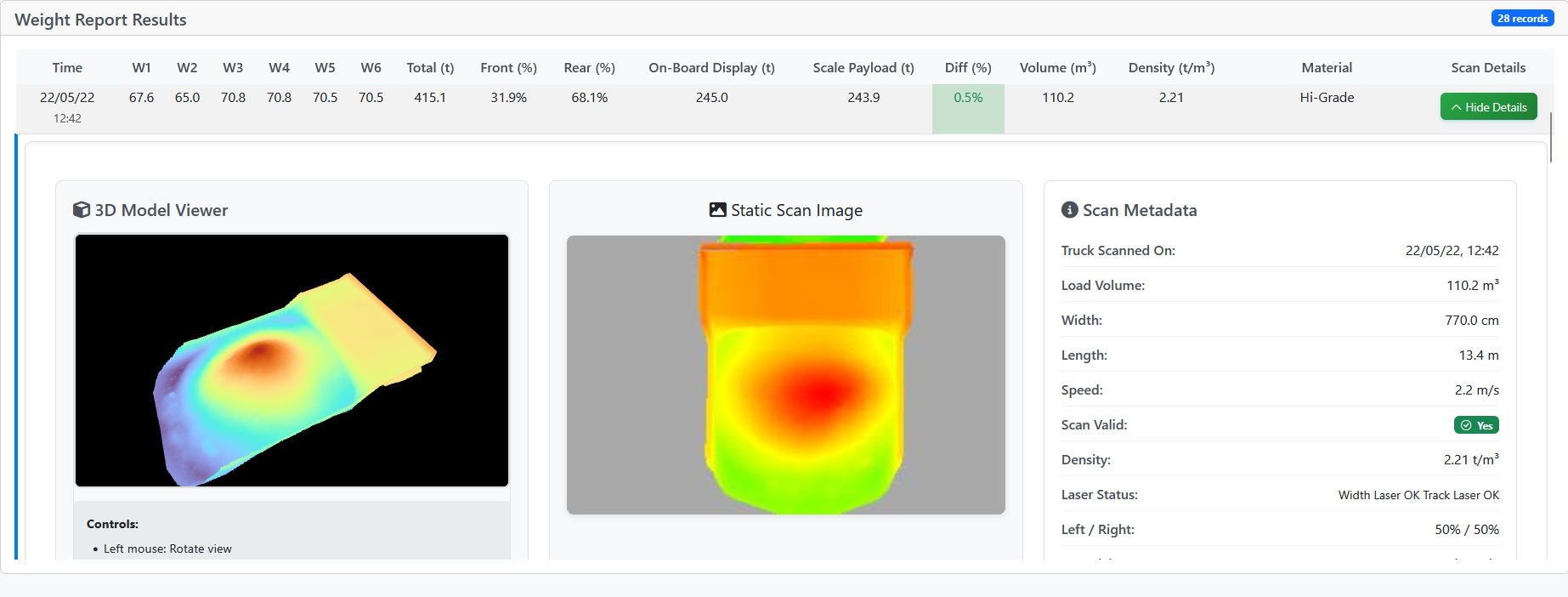

  • Cloud connectivity options for reporting and live system status via the web
  • Support for multi site operations

Thanks to X3DOM

  • Press 'r' to Reset View
  • Use mouse to 'Explore'
  • Scroll wheel to zoom
  • Double-click to make centre

Do you have a short term requirement ?

We can hire the core components of the Volume Scanner system for temporary installation.

Contact us
